As the global Direct-to-Film (DTF) textile printing market continues its rapid expansion, small and medium-sized garment printing businesses face a growing demand for integrated, low-maintenance systems that boost daily output while reducing labor overhead.
To address key industry pain points—such as slow printing speeds, unstable white ink flow, messy powder contamination, and high equipment downtime—OSNUO has officially launched its complete OSN-702 60cm (24-Inch) DTF Printing Solution.

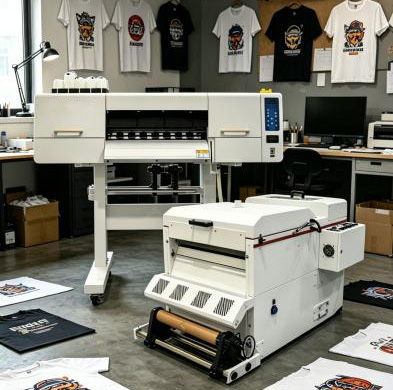

This end-to-end production package integrates the OSN-702 60cm DTF Printer, the M2 Automatic Powder Shaking & Curing Machine, and the D100 Industrial Dust Purifier. Together, they deliver a high-speed, stable, and eco-friendly heat transfer solution for garment print shops, apparel manufacturers, and print-on-demand (POD) merchants worldwide.
Core Advantages of the OSN-702 DTF Printer
1. Dual Original Epson I3200-A1 Printheads for High Productivity
Equipped with dual industrial Epson I3200-A1 printheads in a 4C+W (CMYK + White) ink configuration, the OSN-702 achieves a maximum print resolution of 1440 DPI.
-
4-Pass Draft Mode: Up to 17 m²/h for high-volume orders.
-
6-Pass Standard Mode: 12 m²/h for high-precision detail rendering.
The machine features an auto-lifting capping and cleaning station that prevents nozzle clogging during downtime, significantly minimizing daily operator maintenance.
2. Heavy-Duty Industrial Structure for Non-Stop Printing
Built with a high-rigidity full-aluminum beam frame, imported silent linear guide rails, and wide anti-static pinch rollers, the OSN-702 eliminates media deviation during long, continuous production runs. An adjustable printhead height ($\le$ 5mm) accommodates standard PET/PP DTF transfer films, while a large-capacity bulk ink supply system reduces the need for frequent manual refills.
3. Reliable Control Architecture & Software Compatibility
Powered by the proven Hosonsoft industrial control board and USB 3.0 high-speed data transmission, the system supports mainstream RIP software, including Photoprint and RIIN. Operating on a single-phase 220V power supply with a low 700W power consumption, it keeps workshop utility costs minimal. With a compact footprint (1.82m × 0.87m × 0.75m package size), it easily fits standard factory layouts.
Integrated Equipment for a Complete Workflow
Matching M2 Automatic 60cm Powder Shaker
The M2 powder shaker supports both fully automatic and manual dual-control modes, allowing independent adjustment of powder spreading speed, mesh belt conveyance, heating, and cooling temperatures.
-
Integrated Process: Combines front heat conduction, top drying/curing, and cold-air cooling to ensure even powder melting without uneven gloss or matte patches.
-
Smart Design: A unique split-body structure simplifies shipping and installation. Rated at 4.5kW with a net weight of 250kg, it delivers consistent curing for large-batch continuous production.
Supporting D100 Air Purifier for Eco-Friendly Production
To safeguard operator health and meet international environmental compliance standards, the system includes the D100 low-noise air purifier (≤45dB, 200W).
-
High Efficiency: Features a 3-layer filter core with 99% filtration efficiency for 0.3μm airborne powder particles.
-
Compact & Powerful: Delivers an airflow volume of up to 280 m³/h, rapidly absorbing floating powder residues. Weighing just 15.5kg (440 × 240 × 450mm), it sits conveniently beside the powder shaker.
Key Specifications at a Glance
-
Printhead Type: Dual Original Epson I3200-A1
-
Max Print Width: 600mm (60cm / 24 inches)
-
Ink Configuration: CMYK + White
-
Max Resolution: 1440 DPI
-
Printing Speed: 17 m²/h (4-Pass) / 12 m²/h (6-Pass)
-
Compatible Software: Photoprint / RIIN
-
Power Requirements: Single-phase 220V (Printer: 700W | Shaker: 4.5kW | Purifier: 200W)
Versatile Fabric Applications
The OSNUO OSN-702 complete DTF system eliminates the need for fabric pre-treatment, making it suitable for dark, light, natural, and synthetic textiles:
-
Fabric Compatibility: 100% Cotton, Polyester, Blends, Canvas, Nylon, Leather, and Denim.
-
Product Applications: T-shirts, Hoodies, Sportswear, Canvas Bags, Hats, Pillows, and Custom Workwear.

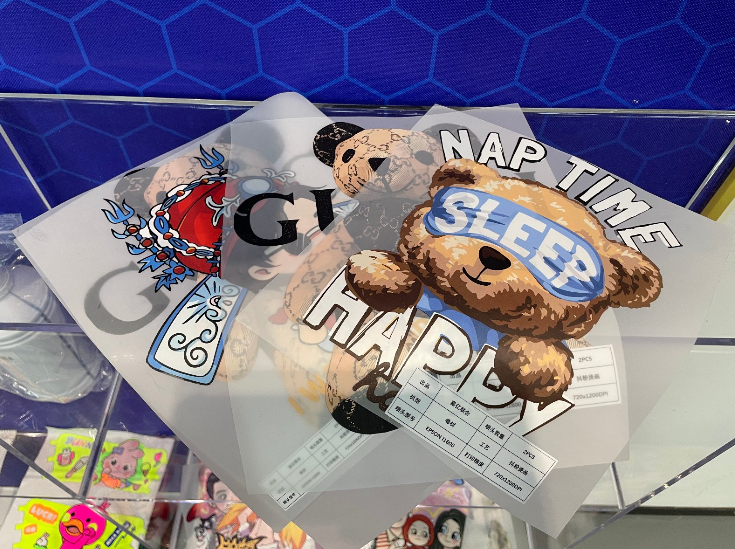

Transfer prints produced by the OSN-702 offer a soft hand-feel, vibrant color retention, and high wash durability without cracking or peeling after dozens of laundry cycles. Whether you are running an Etsy/Shopify POD store or operating a medium-to-large garment decoration factory, the OSN-702 complete DTF package offers a scalable, cost-effective solution to upgrade your textile printing capabilities.
