Some printing tasks are straightforward: flat surfaces, standard sizes, the same pattern repeated thousands of times. The OSN-1218 ccd visual positioning uv hybrid printer was not built for those jobs. It was designed for more complex printing requirements — irregular shapes, frequent product changeovers, and production environments where precision and consistency both matter.
8 Core Features
1. CCD Vision Positioning System
Scans and identifies print targets with 0.1mm accuracy. Manual alignment, custom jigs, and the calibration steps typically required when switching between products are all eliminated. The machine automatically recognizes the material placed on the bed and positions itself accordingly — whether that’s a flat acrylic sheet or an irregularly shaped resin badge.
2. Hybrid Conveyor Belt Platform
Designed for continuous production environments, the OSN-1218 integrates directly into industrial assembly lines and supports automatic loading and unloading.
3. Intelligent Constant-Temperature Ink Supply System
Maintains stable ink viscosity regardless of ambient temperature fluctuations, ensuring consistent ink performance throughout a production run.
4. Automatic Height Detection System
Adapts in real time to variations in material thickness, removing the need for manual adjustment when switching between substrates.
5. Ricoh Gen6 Printheads
Configurable from 2 to 8 printheads based on output requirements. Resolution reaches 720 × 1800 dpi, with three speed modes available: 4-pass draft at 22 m²/h, 6-pass standard at 18 m²/h, and 8-pass high-precision at 12 m²/h. The print area is 1200mm × 1800mm, supporting both roll-to-roll printing and rigid boards up to 20mm thick.
6. Integrated 3-in-1 Software System
Combines printing control, RIP processing, and vision positioning into a single platform. Supports TIFF, PDF, JPEG, EPS, and AI file formats via Gigabit Ethernet, removing the need to manage multiple separate applications and simplifying the overall workflow.
7. LED UV Ink and Ink Configuration Options
The OSN-1218 uses eco-friendly LED UV ink — non-toxic, fast-curing, and weather-resistant. Additional ink configurations are available depending on surface finishing requirements, including white ink, clear varnish, primer, and metallic gold hot-stamping effects.
8. Broad Material Compatibility
Compatible with flexible films, coated backlit fabrics, 3P fabrics, glass, ceramics, acrylic, PVC boards, and more.
Real-World Production Results

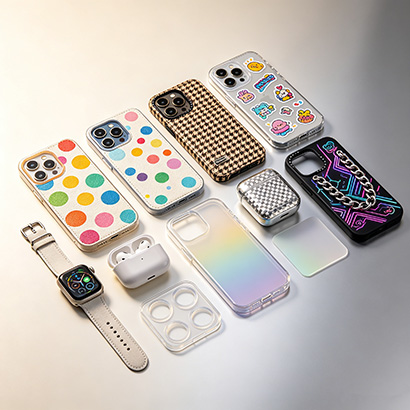

3C Accessories — TPU and PC Phone Cases
The CCD vision system eliminates the need for custom jigs and enables fully automatic alignment. White ink and varnish layering produces a durable embossed texture. Daily output exceeds 3,000 units with a defect rate below 0.5%, and changeover time between product SKUs has been reduced from 4 hours to 15 minutes.

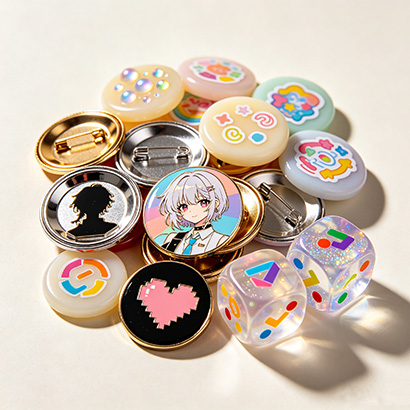

Creative and Cultural Products — Metal Badges, Resin Buttons, and Acrylic Dice
Small size, irregular shapes, and fine detail requirements are handled without issue through the combination of conveyor feeding and CCD positioning. Running in 8-pass high-precision mode delivers vibrant colors and sharp edge definition. Unit costs have come down 35%, making small-batch, multi-variety production genuinely viable.
Conclusion
The OSN-1218 is well suited for businesses running small-batch customization, high-mix production, or jobs where traditional flatbed printers consistently struggle with registration accuracy. Contact us to learn more or to request a sample print.
